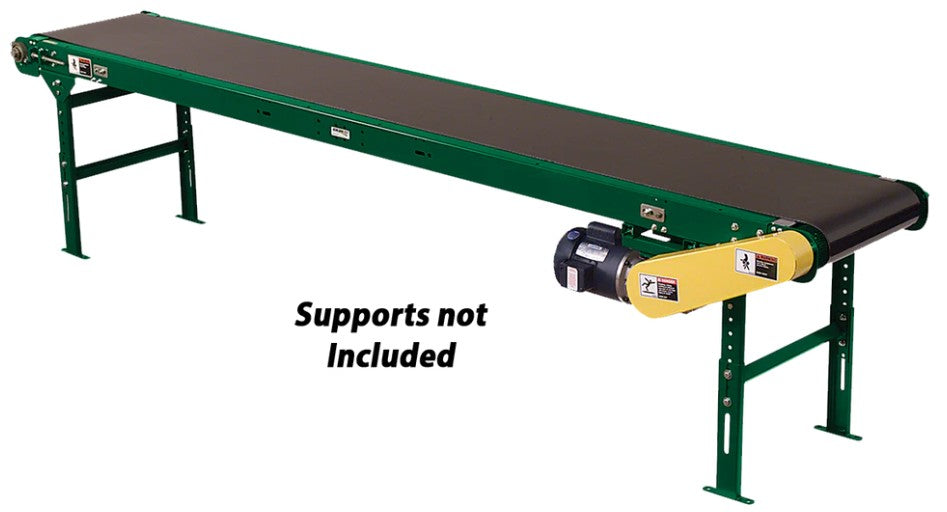

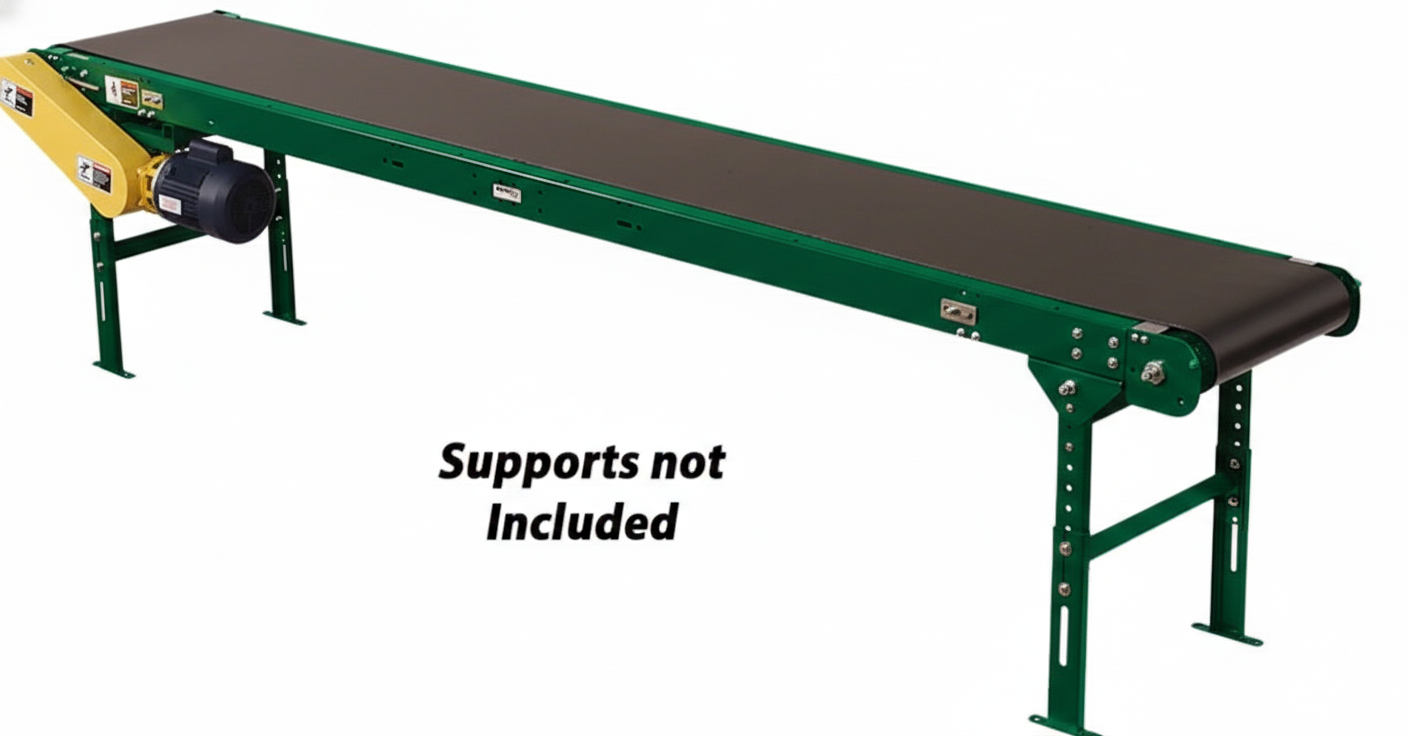

Industrial Powered Slider Bed Box Frame Belt Conveyors

Powered Belt Conveyors are the most versatile and simplest material handling systems around. Our conveyors feature a box style (formed)slider bed, ideal for workers stationed alongside the conveyor, allowing for the smooth transportation of many different loads. Powered belt conveyors do not rely on gravity and are therefore an economical solution for situations not suited for gravity conveyors. Ideal for automation, packing, testing, inspecting and a variety of assembly line operations.

• Available Lengths (ft): 6, 11, 16, 21, 31, 41, 51
• Drive: End Drive Right Hand, Center Drive
• Belt Width: 6, 12, 18, 24, 30, 36
• Belt: General Purpose Smooth Black PVC (std offering), Rough Top Black, FDA/USDA Food Grade upon request.
• Motor: 1/2 HP 120/240v 1ph, 230/460v 3ph
• Speed (ft/min): 90 (std offering), 30, 40, 60, upon request
• Supports: Sold Separately
• Many Options Available CONTACT US!
