CDLR Chain Driven Live Roller Conveyor / Pallet Conveyor

NOT SEEING WHAT YOU'RE LOOKING FOR? CONTACT US!

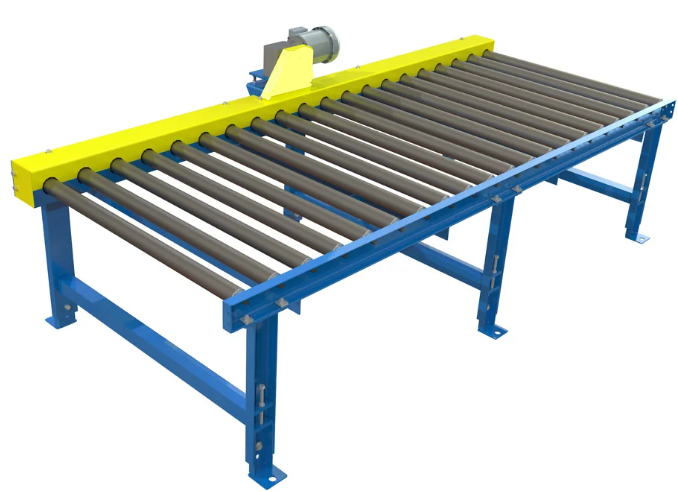

Chain Driven Live Roller (CDLR) Conveyors, often called Pallet Conveyors are ideal for transporting loaded pallets, tires, drums, or other heavy items. The welded construction makes it durable enough to handle the harshest conditions. The sprocketed rollers and roll to roll chain system provide positive driving power. Build to order lengths and widths available.

• Positive drive using roller to roller chain and sprockets
• Withstands even the toughest environments and abrasive applications
• Robust, welded construction using structural steel
• Nearly unlimited between frame dimensions, length options and roller options
• Common applications include palletizing, filling, load staging, robotic cells, stretch wrapping, strapping and transportation

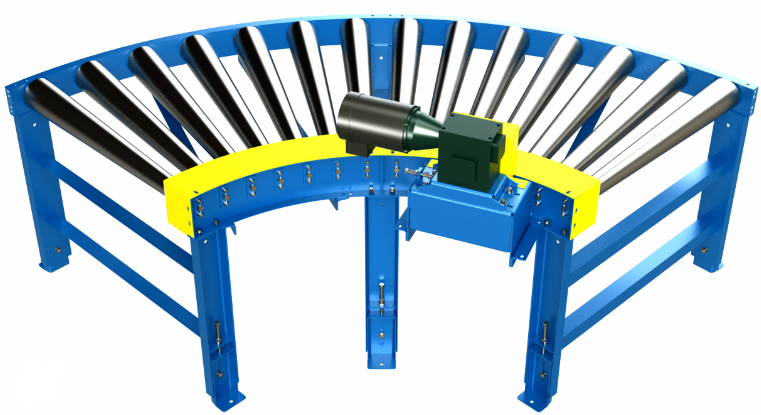

• Conveyance Surface Width: Straight Sections = 49-3/4" Curved Sections = 51-3/4"
• Rollers: 2.5" dia, 6" Centers. Tapered Rollers on Curves
• 230/460 3ph Motors
• Speed: 35fpm
• Supports for 24"-32" Adjustment
• Lead Time: 4-6wks
• Many Options Available (Contact Us)
